111 & 141 N Front Office and Garage

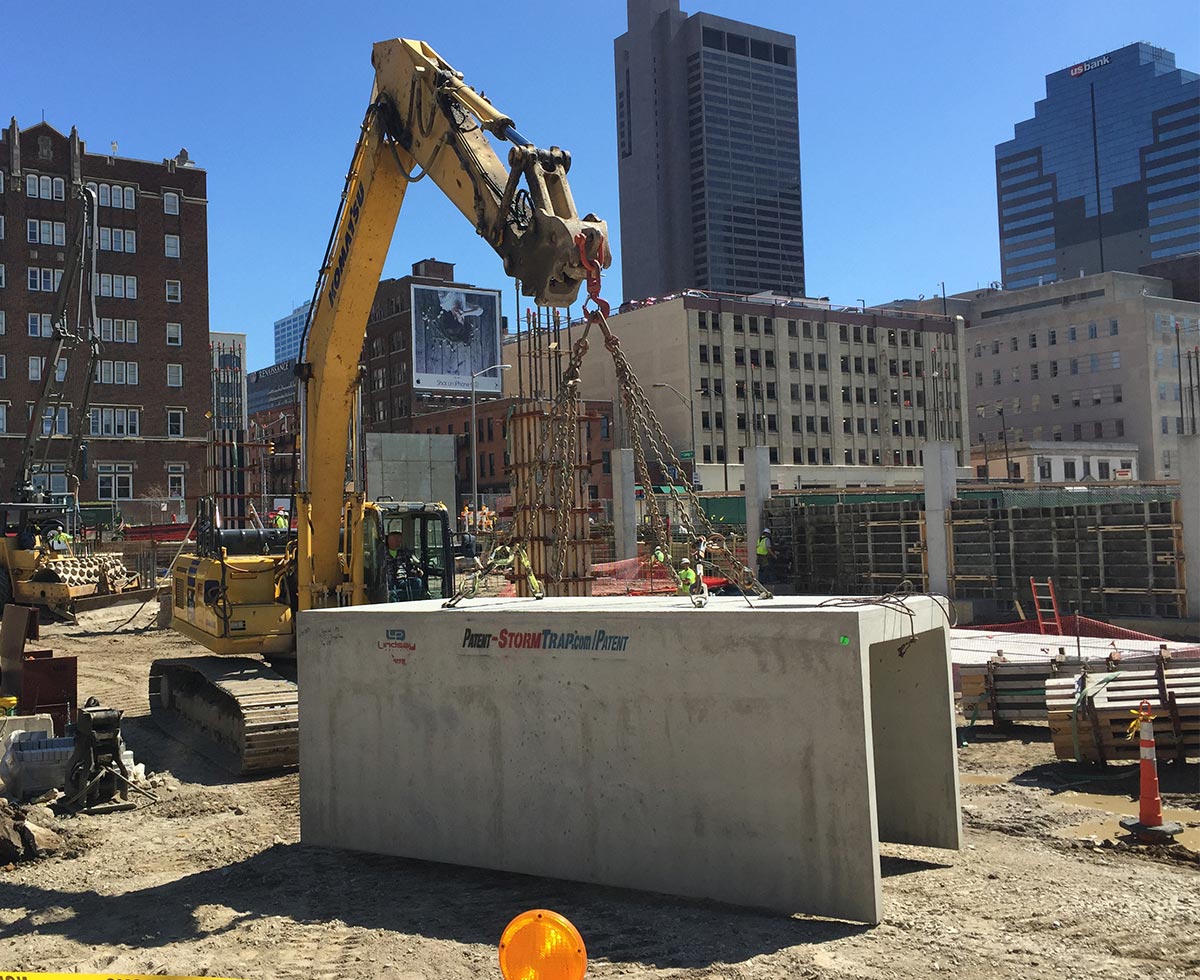

Construction site with heavy machinery moving large concrete slabs. Workers are visible, and city buildings are in the background under a clear blue sky.

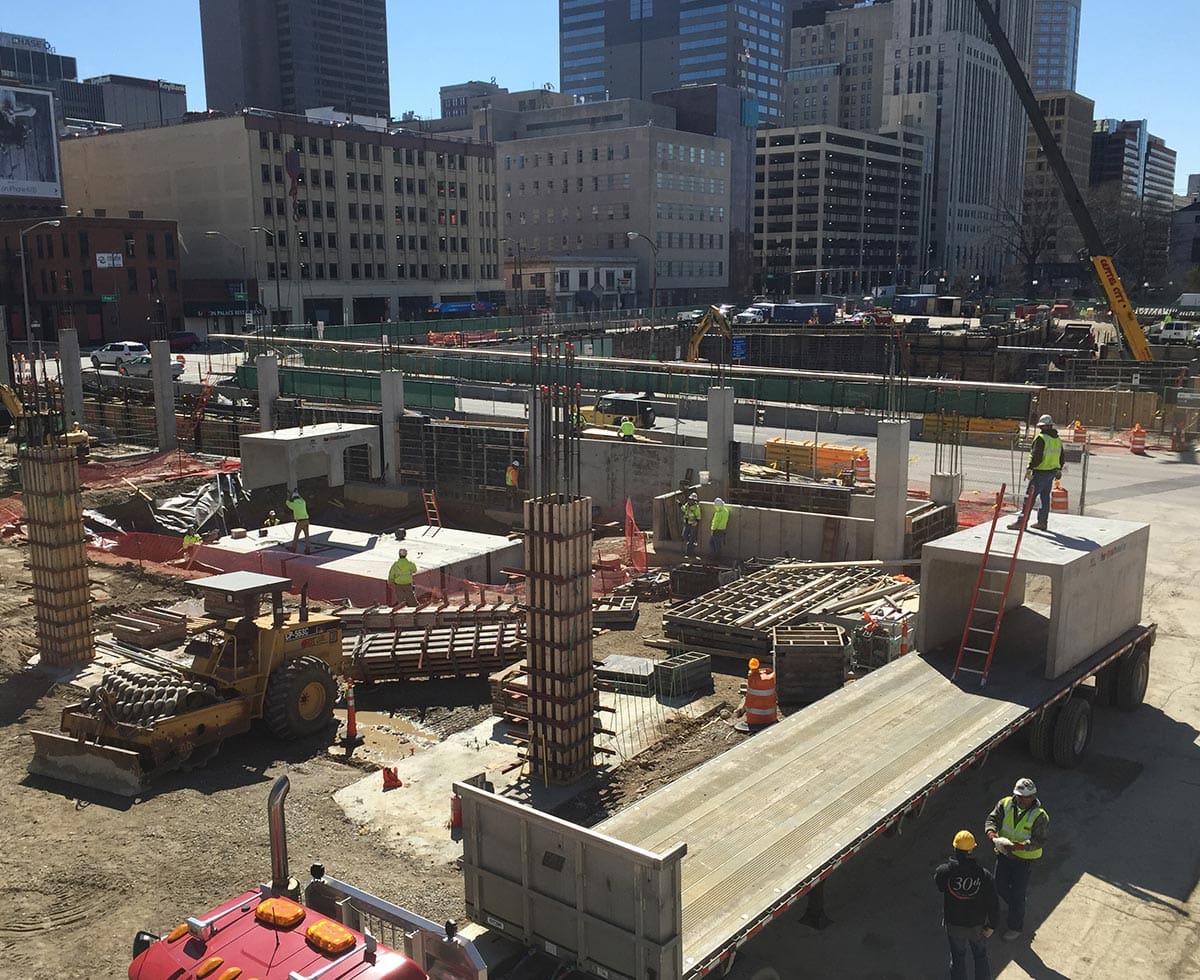

Construction site with workers, machinery, and trucks. Steel and concrete materials are visible. Buildings and a crane are in the background.

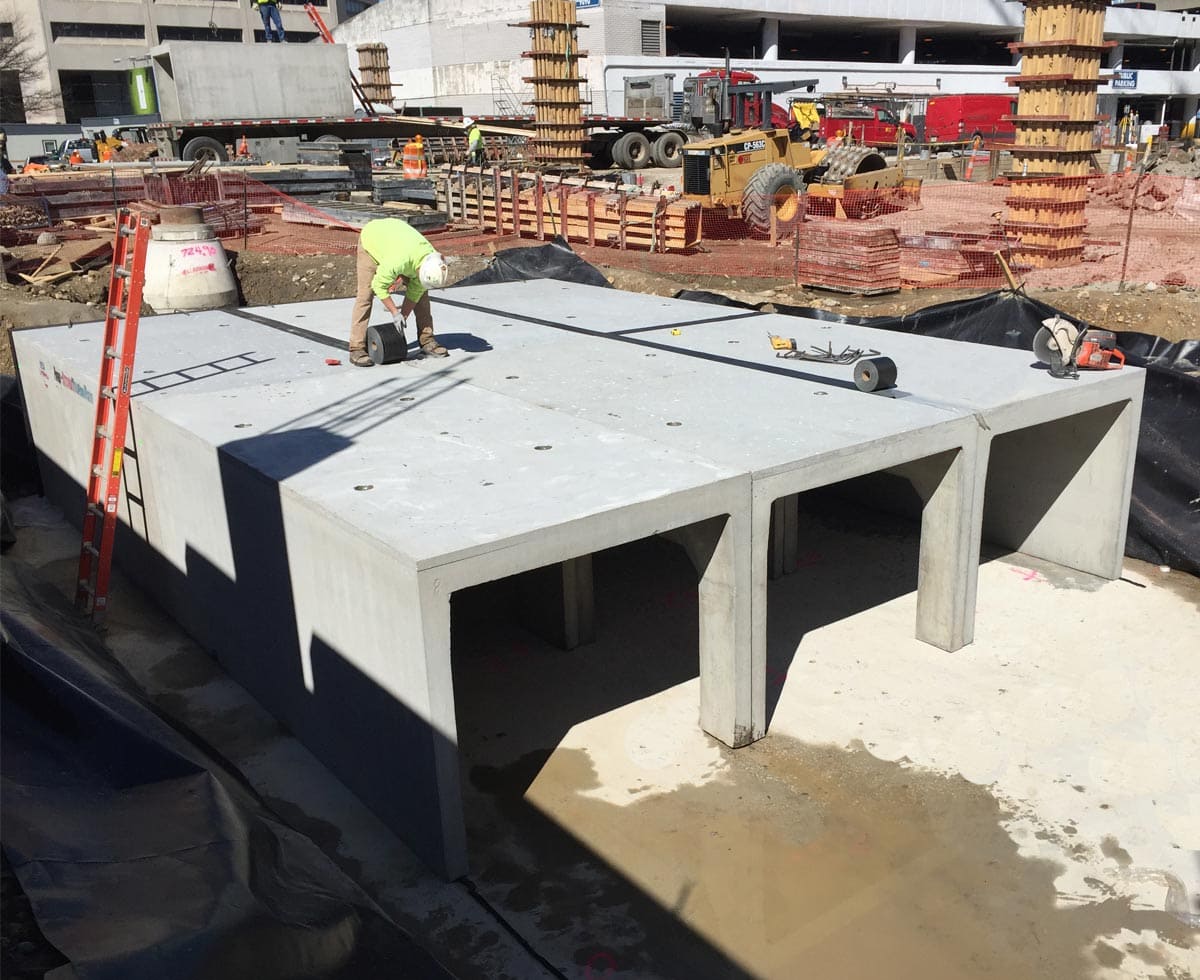

Construction worker on a large concrete slab with open compartments, surrounded by construction materials, ladders, and equipment on a worksite.

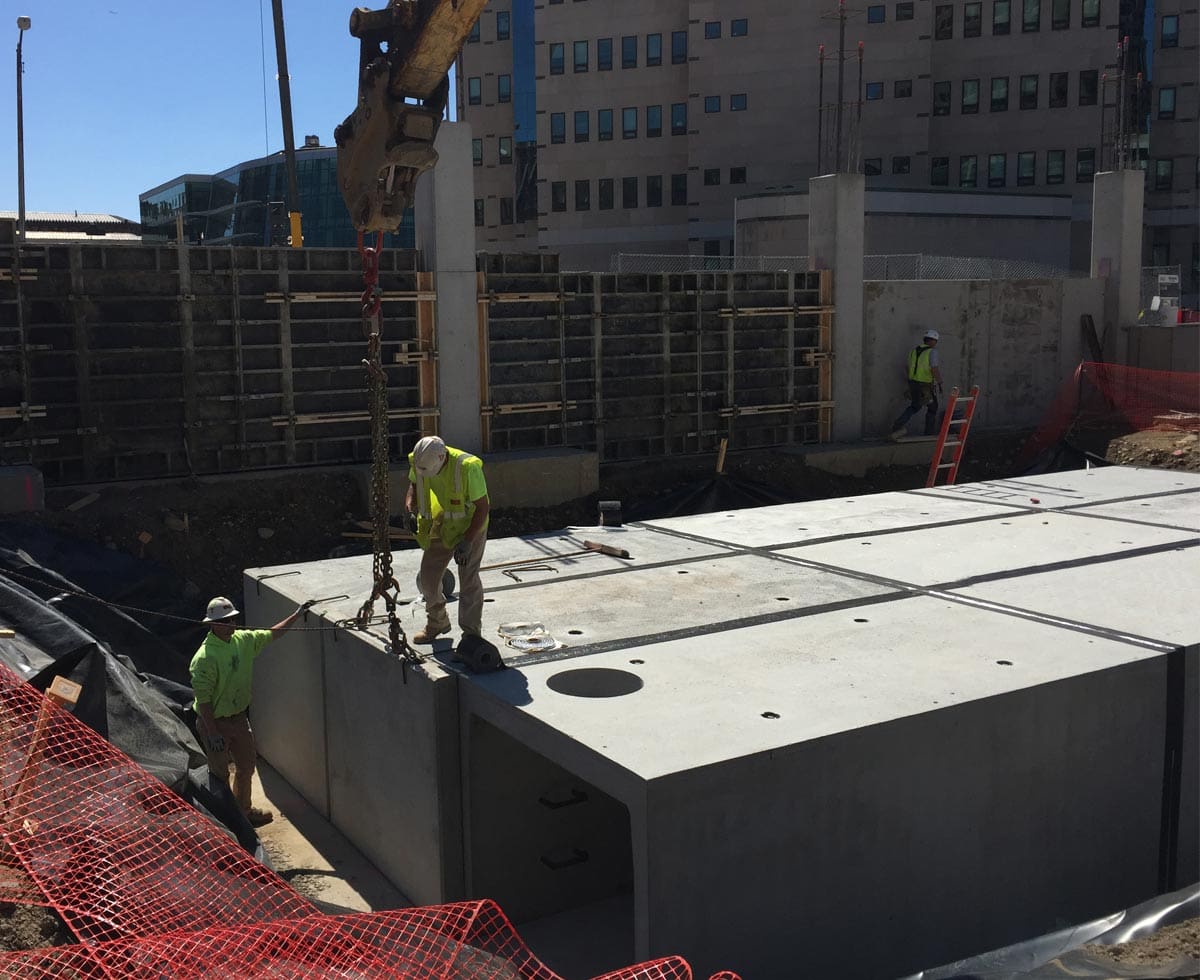

Construction site with workers guiding a large concrete block into place using a crane. Plaid and mesh barriers surround the area, with a tall building in the background.

Product(s) Used:SingleTrap

Solution:Detention

Market:Commercial

Location:OhioUSA

Project Details

A stormwater detention system was installed under the parking garage slab at 141 N Front St. in Columbus, OH to meet the City of Columbus stormwater management requirements.

Challenges

The main challenge of this project was to fit the stormwater unit in the tight site and to meet the water storage volume required by the City.

Solutions

Working directly with the project engineers, the StormTrap team provided a practical way to store water beneath the parking garage. The StormTrap units reduced the footprint and maximized the water storage. Nine pieces of 5’- 0’’ SingleTrap were used for the detention stormwater system, meeting the required water storage volume for the project – 3,800 cf. The system discharges in a municipal storm sewer.

Kyle Wrentmore, Project Developer for Korda Nemeth Engineering, mentioned that StormTrap provided the solution they needed for the site, “StormTrap was chosen for its versatility and flexibility. It is an ideal system for downtown settings and providing storage under building structures.”

“StormTrap was chosen for its versatility and flexibility.”

– Kyle Wrentmore, Project Developer, Korda Nemeth Engineering
