SurgeSettler®

Improve Water Quality

Treatment Solutions for Stormwater, Urban Runoff and Combined Sewer Overflow (CSO) Discharges

View Specs & Docs

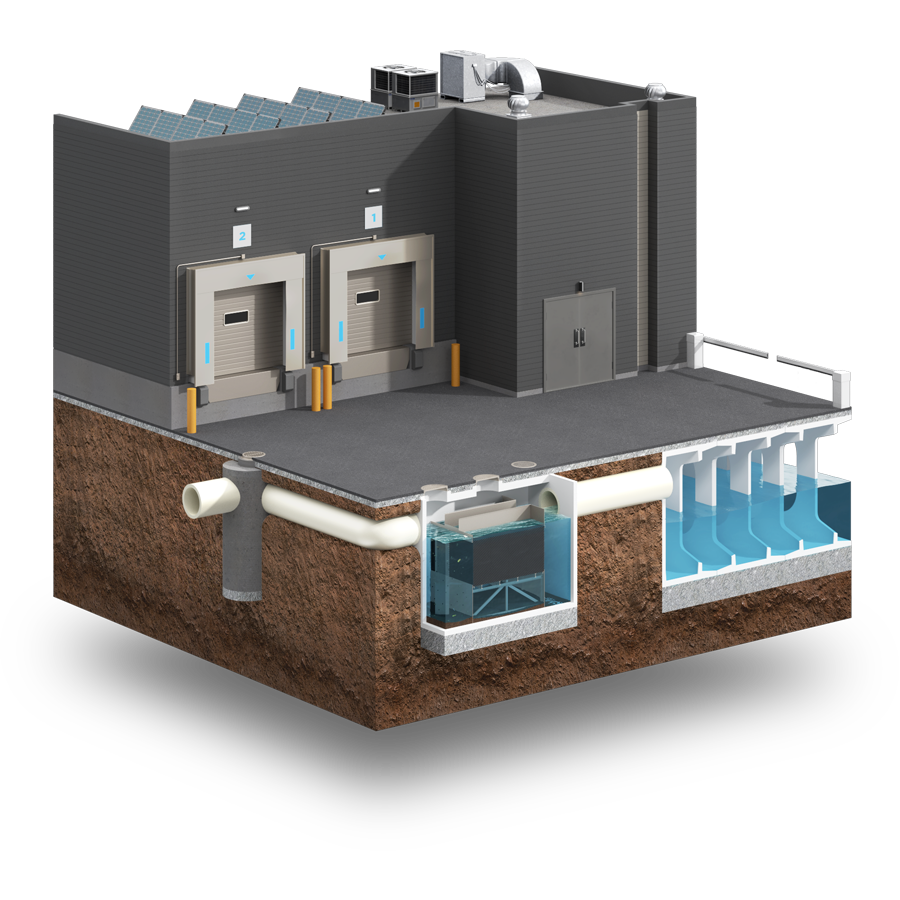

A cross-section of a commercial building shows loading docks, underground pipes, and a wastewater treatment system with tanks and filtration chambers.
Please  accept marketing-cookies  to view this video.

SurgeSettler® Advantages

Cutaway view of a concrete stormwater treatment system showing the enhanced settling pack capturing debris and sediment from stormwater.

High-Flow Treatment Solutions

SurgeSettler® is a high-performance water quality treatment device designed for high-flow stormwater applications. Built to treat large stormwater flows within a single structure, SurgeSettler uses enhanced settling pack technology to efficiently remove sediment during significant storm events, making it ideal for large-scale developments.







Proven Performance

Seal of the New Jersey Department of Environmental Protection, featuring a globe with a bird in flight over ocean waves, encircled by the organization's name.

NJDEP Certified configurations available

NJCAT logo with large letters "NJCAT" and smaller text reading "Corporation for Advanced Technology." A globe with a check mark and gear is incorporated into the letter "O".

NJCAT Verified test data



Trusted Technology

Diagram of a sectioned building with a blue pipeline running horizontally through the structure and various geometric elements inside.

NJDEP certified configurations support online use with minimal scour during peak flow conditions.

Line drawing of an industrial filtration unit, showing interior structure with intake and outflow ducts, frames, and filter panels inside a rectangular enclosure.

Internal flow-control components distribute stormwater evenly through the settling pack, promoting pollutant capture before treated water exits the system.

Line drawing of a kitchen sink with two basins and a draining basket in the left basin, shown from a top-down view. There’s also a circular object in the right basin.

SurgeSettler features enhanced settling pack technology designed to increase treatment surface area and shorten particle settling distance



Efficient Design

Diagram of air flowing through a filter inside a rectangular duct system, with arrows indicating the airflow entering, passing through the filter, and exiting.

Internal flow controls help distribute incoming stormwater evenly through the treatment zone.

Diagram of a building section showing a stage, backstage area, side rooms, and a blue dashed line crossing horizontally through the center.

Inlet and outlet inverts can be at the same elevations

Simple black and white floor plan illustration with a large central rectangle, three small rectangles at the top, and a large circle in the top right corner.

Flexible inlet configurations support side-entry, angled, and 90-degree pipe orientations.

Diagram of a rectangular room with a large doorway, vents on top, and a blue X marking a side entrance on the left.

Designed to prevent sediment deposition in inlet pipe.



Quick Installation

Illustration of a person wearing a hard hat and safety vest, depicted in grayscale.

On-site supervision available on each project



Easy Maintenance

Diagram of a cross-sectional view of an industrial furnace, showing internal chambers, insulation, and structural supports.

Maintenance-friendly access to the forebay, center and outlet bay allows routine maintenance to be performed from grade.

Diagram of a rectangular sink with a central square drain, two circular fixtures on either side, and a grid pattern at the bottom.

Designed with Maintenance in mind, SurgeSettler includes a dedicated 2 x 2 access opening through the center of the settling pack,

A smartphone with a single eye on the screen and blue Wi-Fi symbol above it.

May be equipped with remote monitoring technology to reduce the time and resources required for inspection

SurgeSettler Project Profile

Aerial view of a construction site with workers installing large concrete pipes and rectangular structures using heavy machinery.

Research and Development Laboratory

An underground stormwater treatment system was installed at a research and development laboratory in Morris, Illinois, to improve the treatment of…

Specifications & Documents

SurgeSettler Brochure

SurgeSettler Specifications

SurgeSettler Operations and Maintenance Manual
